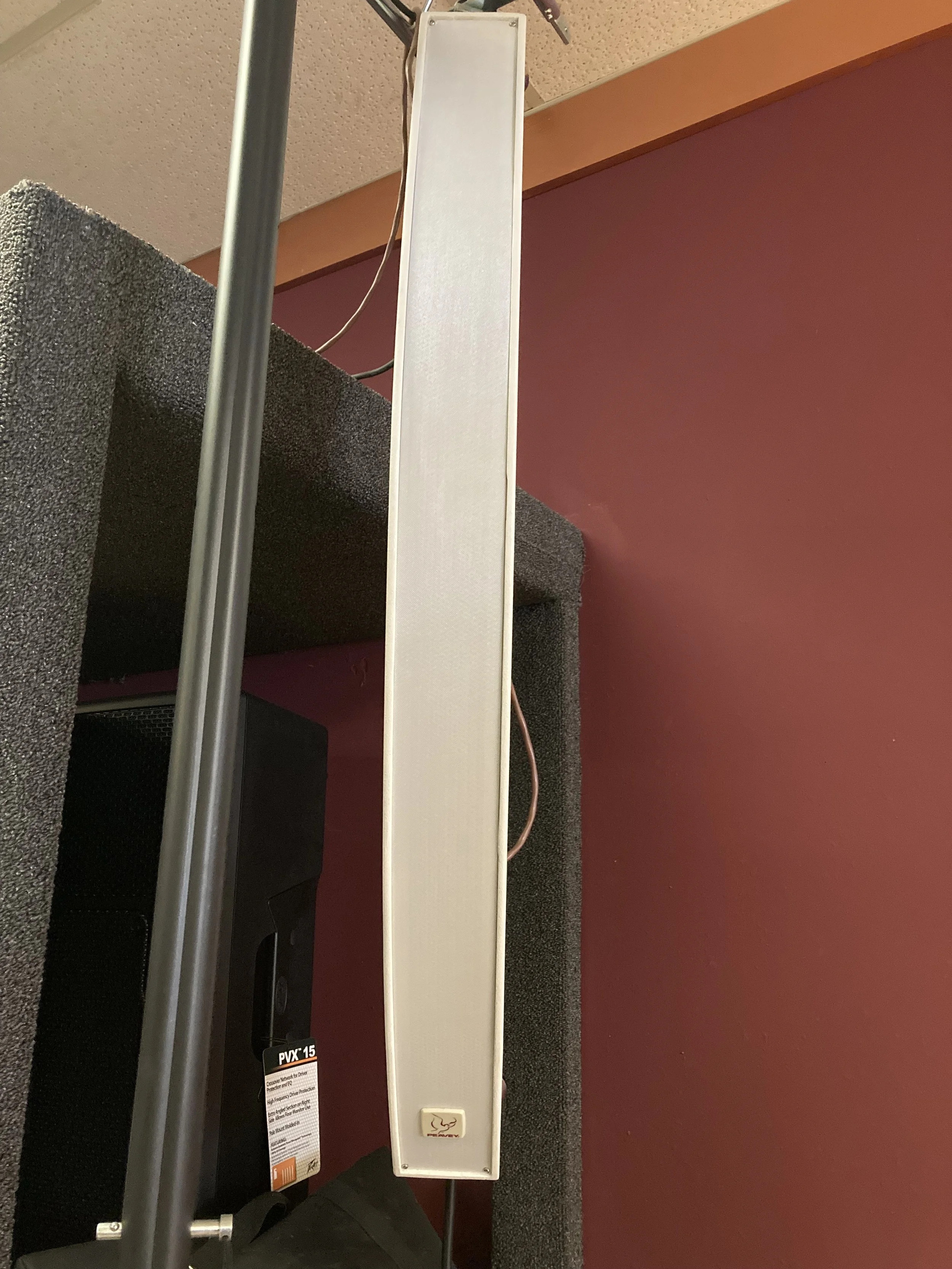

Designed for use in permanent professional
installations in churches, theaters, auditoriums,
gyms and theme parks, the SSE LA is a dual-radius
curved line array that provides a controlled and
contoured vertical coverage pattern for improved
intelligibility in large reverberant spaces. The
dual-coverage pattern provides a tight 20° vertical
coverage for the primary long-throw pattern and a
40° vertical coverage for the secondary short-throw
pattern. The smooth curves of the SSE LA array
allows the it to be flown much lower than most “J”
lines can, increasing the flexibility and utility in

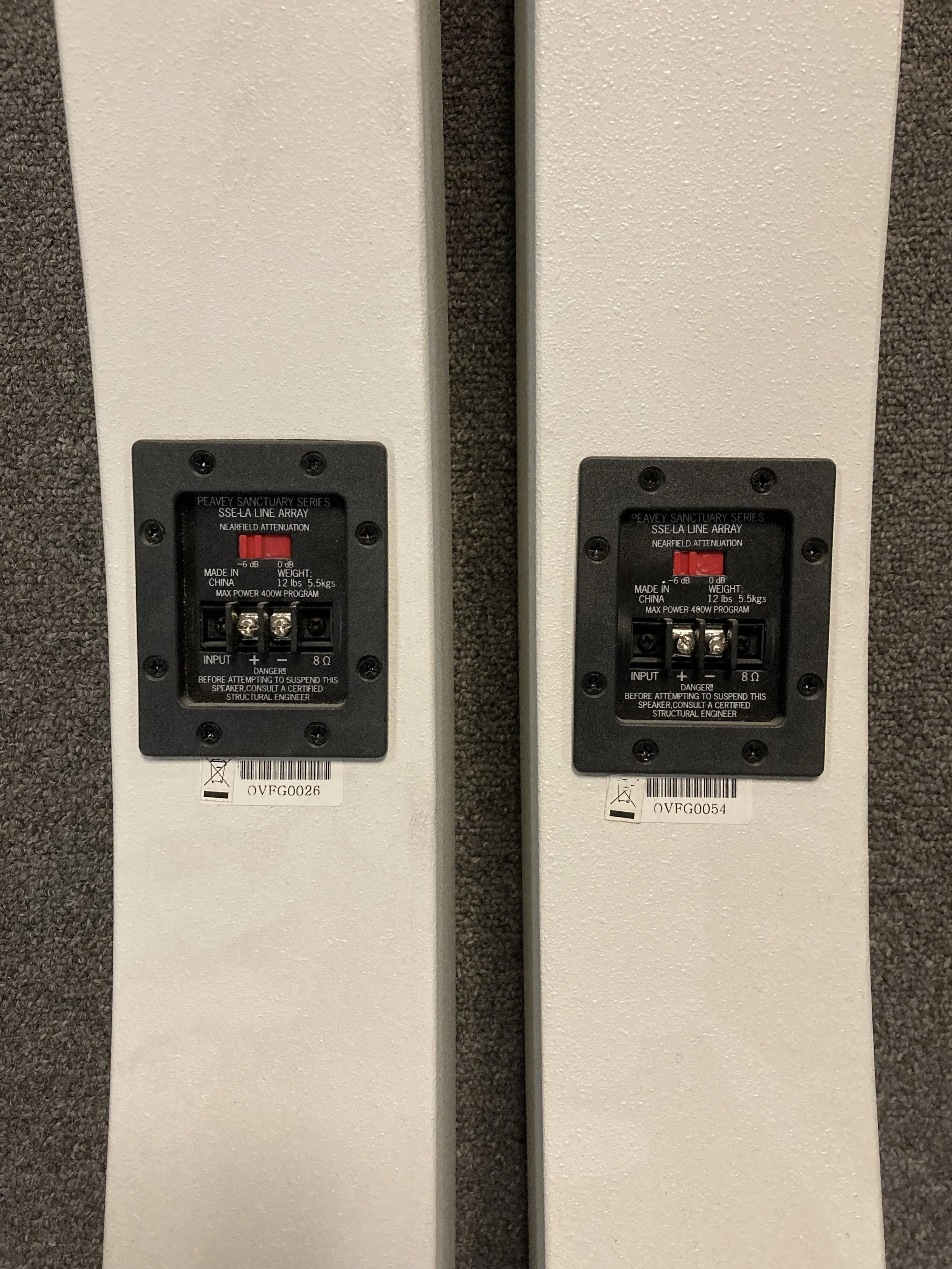

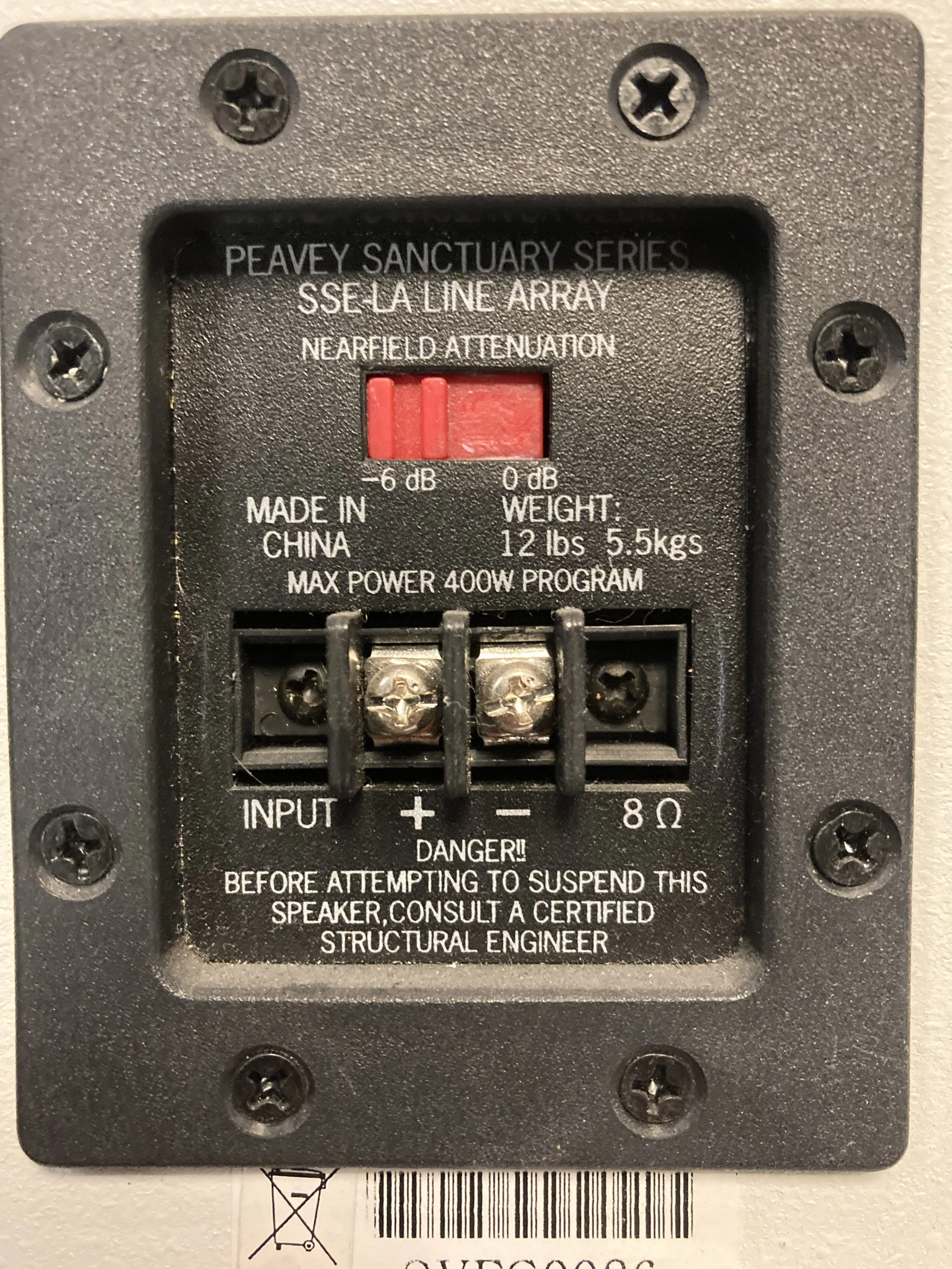

spaces with low ceilings. Adding to this versatility is
an attenuation switch for the lower half of the short-
throw pattern that reduces the output so that it does
not overpower the audience just below and in front
of the array.

SSE 110 subs are designed to work the the Peavey SSE Line Array. Single 10" Woofer.

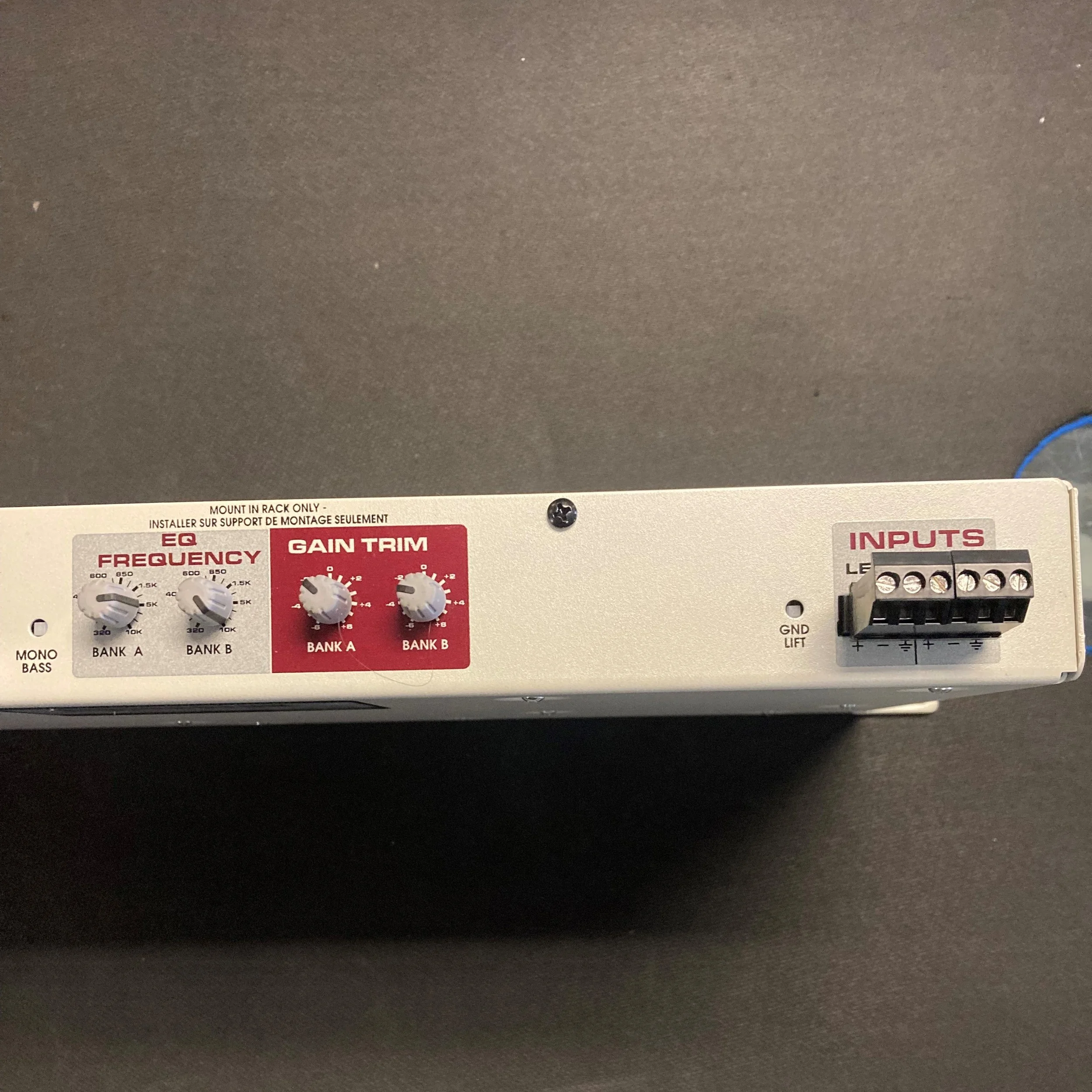

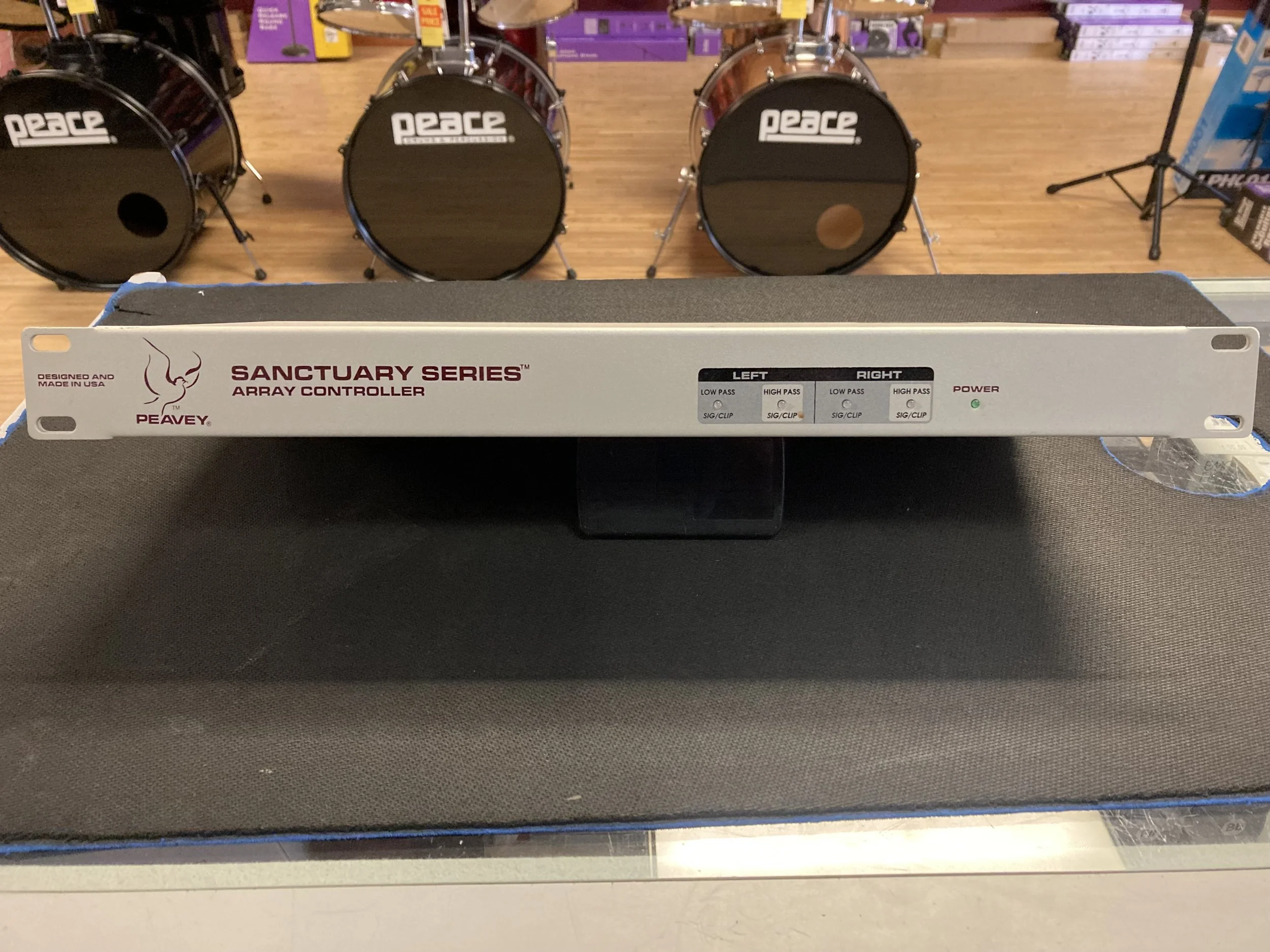

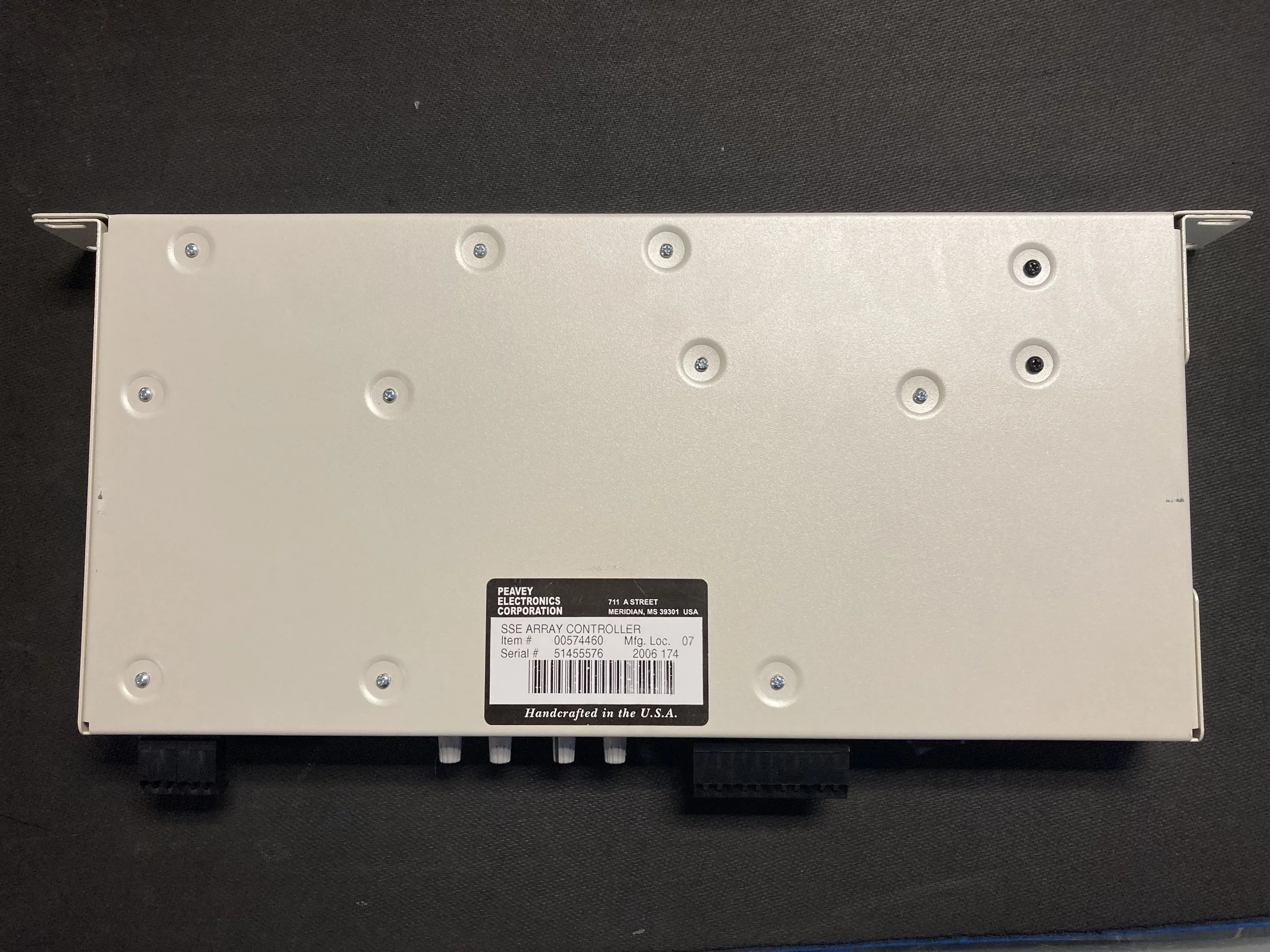

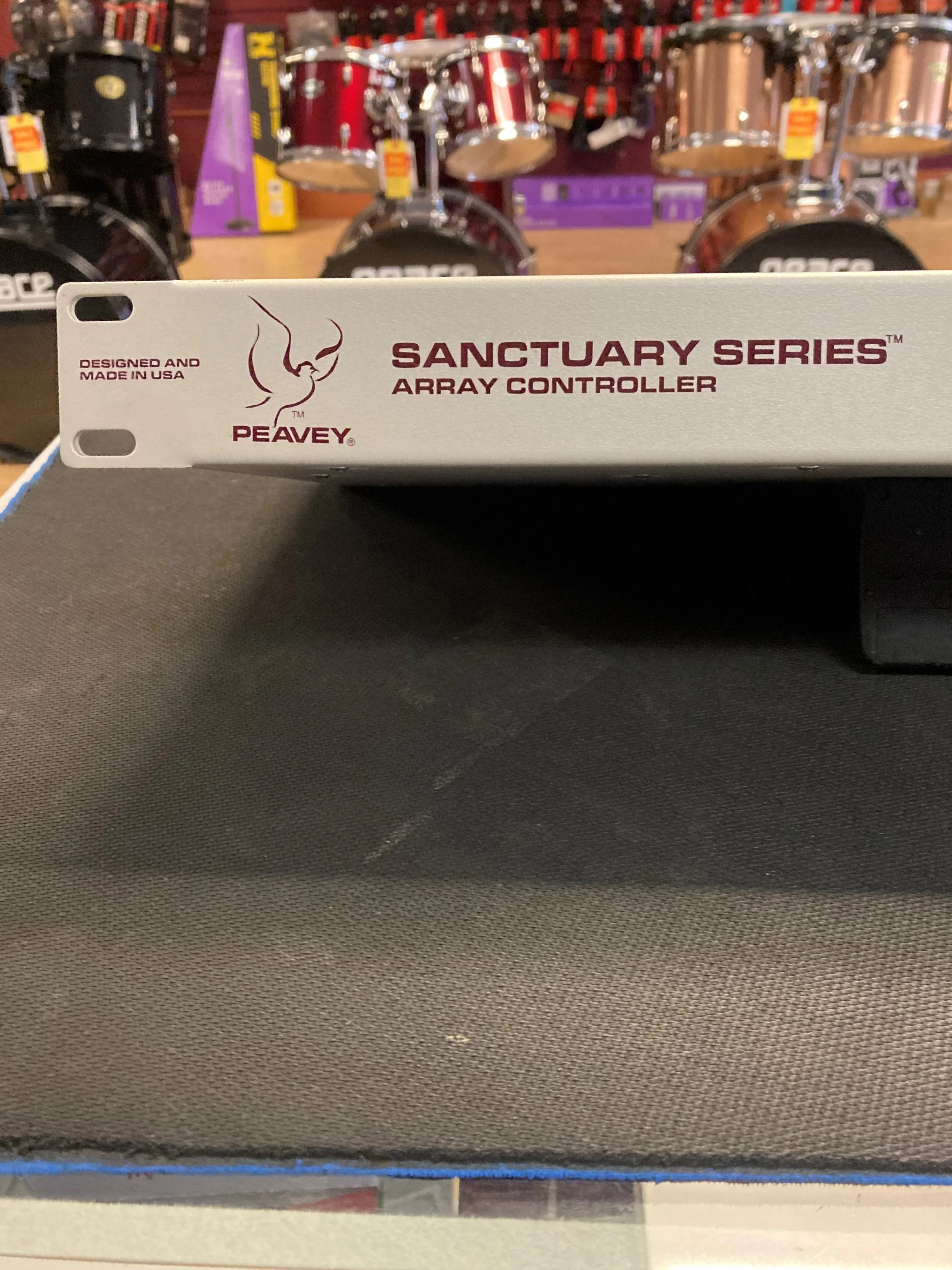

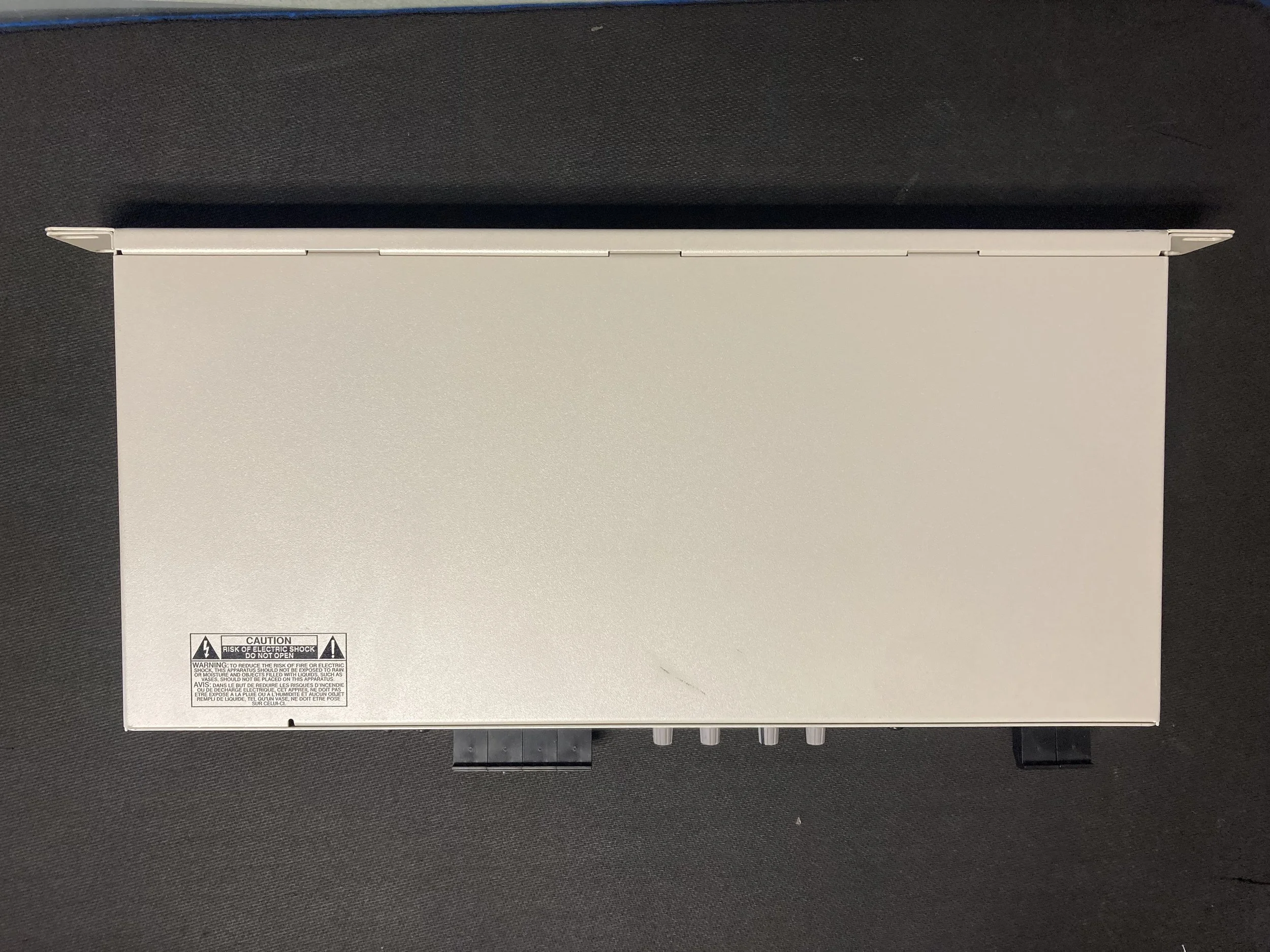

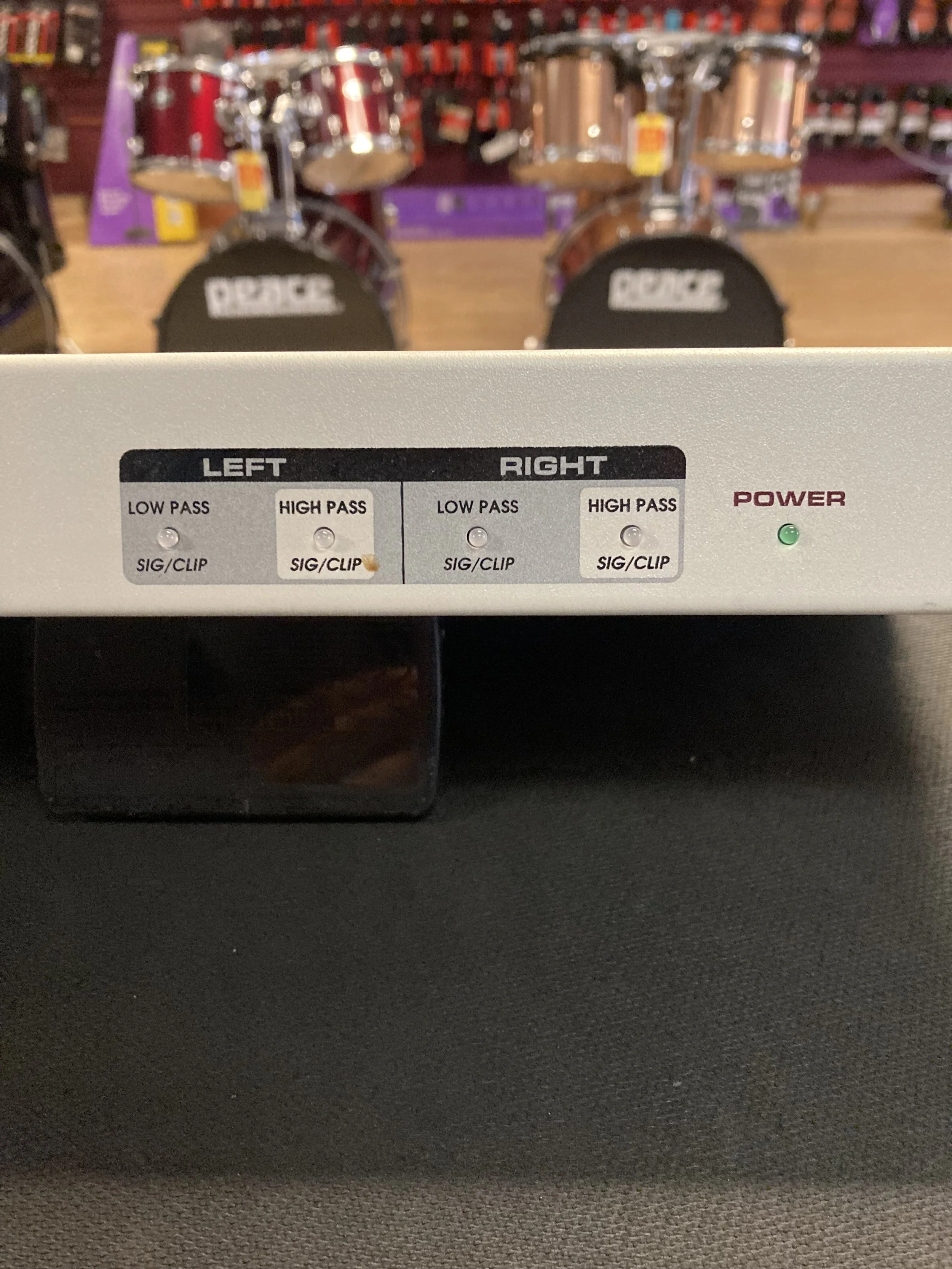

Versatile control for your Sanctuary system.The rackmountable SSE Array Controller combines the latest solid state technology with a host of versatile functions. Euro connectors that provide both balanced and unbalanced inputs offer optimum signal transfer. Tunable quasi-parametric crossover controls allow for precise configuration. A switched low sum feature combines the low frequency signal of both channels for an ideal balanced output to a woofer system. The Peavey Sanctuary's phase integrity is maintained throughout the circuitry for optimum signal fidelity.Features

• 2-way crossover, optimized for the Peavey SSE loudspeaker family

• Crossover frequency: 200 Hertz

• Stereo or 2-channel operation

• Sub-sonic filter

• Euro connector balanced inputs and outputs

• Ground lift hum isolation

• Mono Bass-summing

• Level intensity green LEDs

• Red clip LEDs 3 dB below actual electrical clip

• Two banks of quasi-parametric EQ from 320 to 10 kHz

• Two banks of +/- 6dB EQ gain trim

• Q = 2 on filter bank A

• Q = 1 on filter bank B

• Recessed switches and controls to prevent accidental adjustment
